Double-Flanged Straight Piece
A straight barrel with a flange at each end can provide a simple detachable connection between fixed interfaces.
Custom flanged spool pieces for planned removal and reinstatement
Removable Spool Piece Manufacturer in India
Mesta Inc. is a removable spool piece manufacturer that works to approved drawings, flange details and project specifications. Consequently, buyers can procure a traceable, dimensionally controlled piping component for planned maintenance access, equipment interfaces or approved isolation arrangements.
Custom Removable Spool Piece Manufacturer
A removable spool piece manufacturer fabricates piping sections that normally use bolted flange connections so qualified site personnel can detach and reinstall them during an approved maintenance activity. A product may contain a straight run, reducer, elbow or another drawing-defined configuration. However, the project drawing must establish every component and interface.
Mesta Inc. produces removable pipe spools for project-specific dimensions, materials and quality requirements. First, the team reviews the latest drawing revision, bill of materials and piping class. Then, approved production information controls cutting, fit-up, welding, inspection, marking and release.
This page focuses on product selection and procurement. For maintenance applications, removal clearance and isolation considerations, read our technical guide to a removable spool in piping. For general permanent sections, explore our custom pipe spool pieces.
Made to drawingApproved dimensions and piping-class data define each custom assembly.
Matched flangesType, class, facing, bore and orientation match the specified interfaces.
Spool identificationMarking links the physical product with drawings and quality records.
Project documentationAgreed material, welding and inspection records support release.
Removable Spool Piece Manufacturer Specifications
A removable spool piece manufacturer must connect published capability with the approved project requirements. The current Mesta Inc. product page lists the broad capability shown below. Nevertheless, buyers should request written confirmation for each material, size, wall and process combination.
| Specification item | Published capability | Required project detail |
|---|---|---|
| Nominal size | 1/2 in to 48 in | State NPS/DN, actual outside diameter where relevant and quantity. |
| Pipe wall | Schedule 5 to XXS | Specify schedule or actual wall thickness for each component. |
| Pipe dimensional reference | ASME B36.10 currently listed | Also define the governing construction code, material specification and client requirements. |
| Published welding methods | MIG, GTAW, SAW, SMAW and FCAW | Select only qualified processes appropriate for material, thickness, joint and service. |
| Fit-up types | Roll fitting and welding; position fitting and welding | Confirm geometry, weld access and practical positioning requirements. |
| Published materials | Carbon steel, stainless steel, alloy steel, copper, Inconel, Monel and Hastelloy | Provide complete grade, product specification and any supplementary requirements. |
| Connection arrangement | Custom flanged and drawing-defined ends | Provide flange standard, type, class, facing, bore and bolt-hole orientation. |
| Inspection and testing | According to the approved purchase-order scope | Provide ITP/QAP, NDT extent, PMI, pressure-test and witness requirements. |
| Surface condition | Project-specific finish or preservation | Provide cleaning, coating, painting, pickling, passivation and protection requirements. |
Standards note: The official ASME B36.10 standard covers dimensional information for welded and seamless wrought-steel pipe. Therefore, a complete spool order must separately identify applicable piping construction, flange, fitting, welding, inspection and material requirements.
Removable Spool Piece Configurations and Materials
Removable spool piece geometry determines the component form and end connections. For example, Mesta Inc. can review straight, reducer, elbow and branch arrangements within the approved manufacturing scope.
Reducer Spool Piece
Additionally, a concentric or eccentric reducer can combine size transition and planned removal in one drawing-defined section.

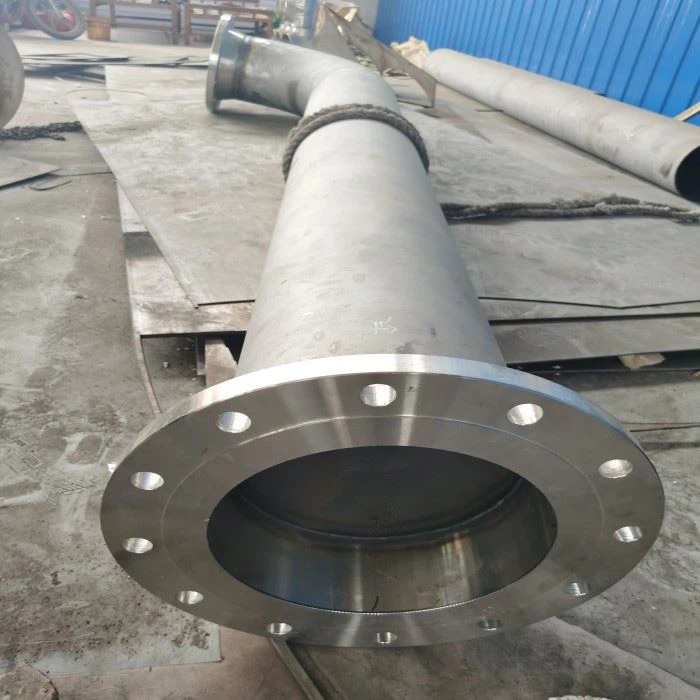

Elbow Configuration
A flanged elbow spool can change direction while maintaining a bolted interface for planned dismantling.
Branch Configuration
Likewise, an approved tee or branch can serve a project need, although isolation-focused spools may require a connection-free barrel.
Stainless Steel
Specified stainless grades may suit corrosive or cleanliness-sensitive process conditions.
Carbon or Alloy Steel
Carbon and alloy grades can support general or project-defined temperature and pressure service.
Configuration warning: Some owner specifications state that removable spool pieces used for isolation should not contain instruments or piping connections. Consequently, the approved P&ID, piping class and isolation philosophy must govern the final arrangement.
How a Removable Spool Piece Manufacturer Builds Each Product
A removable spool piece manufacturer uses a controlled workflow to help each product match its released technical package.
Enquiry Review
First, the team reviews drawings, revisions, material details, quantities and quality requirements.
Material Identification
Next, personnel match approved pipes, flanges and fittings with required material records.
Cutting and Preparation
Then, fabricators cut pipe, prepare weld ends and stage components against released dimensions.
Fit-Up and Welding
Qualified procedures guide alignment, tack welding, production welding and required process controls.
Inspection and Finishing
Afterwards, specified visual, dimensional and other examinations precede approved finishing.
Marking and Release
Finally, spool identity, interface protection and agreed documents support dispatch.
Explore fabricated pipe spool manufacturing for a broader explanation of production activities.
Removable Spool Piece Manufacturer Quality Controls
A removable spool piece manufacturer controls quality because these products often connect fixed flanges or equipment nozzles. Therefore, dimensional checks can directly affect site fit and equipment loading. The approved inspection plan should identify critical dimensions and acceptance criteria before production starts.
Interface Dimensions
Checks can cover face-to-face length, flange parallelism, alignment and bolt-hole orientation.
Material Records
Moreover, material certificates and identification records can support component traceability.
Welding Records
WPS references, welder identity, weld maps and repair status can form part of the quality package.
Examination Reports
In addition, visible, dimensional, NDT, PMI and test reports can document specified results.
See our pipe spool quality control and testing page for common inspection stages and documentation.
Removable Spool Piece Applications
Removable spool piece applications address piping arrangements that require planned access or separation. In particular, projects may use these products for pump and compressor connections, heat-exchanger access, valve or strainer removal, meter-run inspection, selected internal inspection points and engineered line-break arrangements.
For general maintenance-safety context, review the OSHA control of hazardous energy resources. However, the applicable local law, plant procedures and approved task-specific method govern actual removal work.
Industries may include oil and gas, refining, petrochemicals, chemicals, power generation, water treatment, marine systems, mining and general process plants. However, the design pressure, temperature, fluid and maintenance philosophy determine whether a removable spool suits an individual location.
A dummy spool pipe serves a different purpose because it temporarily replaces another item during an approved activity. By contrast, the removable spool piece normally forms part of the operating piping until personnel need planned access.
Removable Spool Piece Selection and Interface Data
Removable spool piece selection starts with fixed-interface and maintenance information. As a result, the quotation can address the real fit-up and documentation risk rather than relying on a nominal pipe size alone.
| Data group | Required information | Procurement reason |
|---|---|---|
| Approved drawing | Spool drawing, isometric, revision and spool number | Defines configuration and controls production status |
| Dimensions | Face-to-face, centre-to-face, tolerances and required withdrawal movement | Supports fit between fixed interfaces and planned removal |
| Flanges | Standard, type, class, facing, bore, material and orientation | Prevents incompatible bolted interfaces |
| Piping components | Pipe, reducers, elbows, branches, attachments and quantities | Controls bill of materials and geometry |
| Design conditions | Fluid, pressure, temperature, corrosion allowance and special service | Guides material and project specification review |
| Quality scope | ITP/QAP, NDT, PMI, PWHT, pressure testing and witness points | Defines production hold points and records |
| Handling | Weight limits, lifting provisions, transport envelope and end protection | Supports delivery and safe site handling planning |
| Deliverables | Marking, reports, data-book format, packing and schedule | Connects the physical spool with project acceptance |
Removable Spool Piece Manufacturer RFQ Requirements
To request a custom removable spool piece, send the latest approved technical documents and state the required quantity. Also include:
- Spool drawing, piping isometric and revision status
- Face-to-face dimensions, tolerances and fixed-interface information
- Pipe size, schedule, material grade and component specifications
- Flange type, class, facing, bore and bolt-hole orientation
- Applicable construction code and client specifications
- Welding, purging, preheat and PWHT requirements
- NDT, PMI, pressure testing and third-party inspection requirements
- Surface preparation, coating, passivation or preservation scope
- Spool marking, document index, packing and delivery schedule
Additionally, identify critical equipment nozzles and required removal clearance so the technical review can flag missing interface data.
Removable Spool Piece FAQs
What is a removable spool piece?
A removable spool piece is a drawing-defined piping section, commonly with flanges at both ends, that qualified personnel can detach after applying the approved site isolation and work procedure.
Does Mesta Inc. manufacture custom removable spool pieces?
Mesta Inc. manufactures project-specific spool pieces against approved drawings and purchase-order requirements. However, the company must confirm each size, material, process and test combination during quotation.
Which dimensions should buyers provide?
Provide face-to-face and centre-to-face dimensions, flange orientation, tolerances and available dismantling movement. In addition, identify fixed piping or equipment interfaces.
Which materials are available?
The current page lists carbon steel, stainless steel, alloy steel, copper, Inconel, Monel and Hastelloy. Nevertheless, buyers should confirm the exact grade and fabrication capability for each enquiry.
Can a removable spool piece include reducers or elbows?
Yes, a released drawing may include straight pipe, reducers, elbows or other approved components. However, isolation-focused designs may restrict branches, instruments or extra connections.
What inspections can the order include?
The approved scope may include visual and dimensional inspection, PT, MT, RT, UT, PMI or pressure testing. Likewise, buyers can specify third-party witness points and document requirements.
Is a removable spool piece the same as a dummy spool?
No. A removable spool usually remains installed during normal operation and supports planned access. In contrast, a dummy spool temporarily substitutes for another component during a defined activity.
Request a Removable Spool Piece Quote
Send Mesta Inc. your approved drawing, dimensions, flange specifications, material, quantity and quality requirements. Our team will review the product scope and identify any technical clarification required for quotation.
