Trial Fit-Up
A dimensionally matched spool holds the required gap during workshop or site trial assembly. Consequently, teams can verify surrounding piping geometry.
Temporary substitution spools made to project requirements

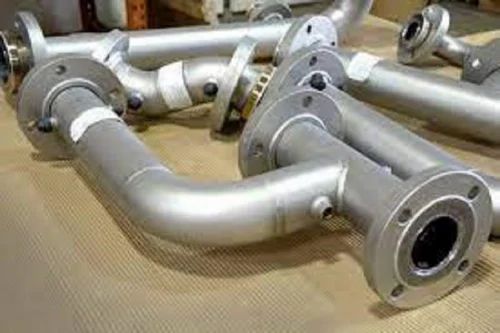

Dummy Spool Pipe Manufacturer in India
Mesta Inc. manufactures each dummy spool pipe to temporarily replace valves, instruments, filters or other inline equipment during trial fit-up, construction, flushing or testing. We match the approved face-to-face length, end connections and project-defined pressure requirements.
What Is a Dummy Spool Pipe?
A dummy spool pipe is a temporary piping section that occupies the space of an inline item. For example, it may replace a control valve, flowmeter, filter, expansion joint or equipment connection that the project cannot install during an early construction activity.
The dummy spool normally matches the required face-to-face dimension and end connections. Therefore, crews can complete trial assembly, maintain piping alignment or prepare a line for an approved flushing or testing operation. After that activity, the site team removes the temporary spool and installs the permanent item.
Mesta Inc. manufactures each temporary pipe spool from an approved drawing and project specification. In addition, our team can incorporate flanged or other specified ends, spool identification, inspection requirements and documentation. For permanent custom assemblies, visit our fabricated pipe spools page.
Temporary substitutionMaintains the designated piping gap until the permanent valve, instrument or equipment item enters service.
Matched dimensionsFace-to-face length, end details and orientation follow the approved temporary-spool drawing.
Project-rated designMaterial, wall thickness, flange rating and test conditions follow the approved engineering specification.
Clear identificationTemporary marking and documentation help the site team track installation and mandatory removal.
Why Projects Use Dummy Spool Pieces
Project teams use dummy spool pieces when a permanent inline item is unavailable, unsuitable for a planned activity or vulnerable to contamination. As a result, construction can proceed without treating the temporary spool as the final equipment item.
Equipment Substitution
The spool temporarily replaces a valve, meter, filter or other inline component that has not arrived or should remain protected.
Flushing Operations
A flow-through spool can keep sensitive equipment away from flushing debris. However, the approved flushing procedure must define the temporary arrangement.
Pressure Testing
A project may use an engineered dummy spool within a test boundary. Therefore, the spool and every connection must satisfy the specified test conditions.
Construction Alignment
The temporary section maintains spacing and alignment until crews install the permanent item. In addition, it can support planned construction sequencing.
Maintenance Planning
Some projects procure a dummy spool for future maintenance or equipment removal. Nevertheless, engineering must approve each installation and operating condition.
Dummy Spool Pipe Specifications
Our team reviews the temporary duty, approved drawing, piping class and test procedure before confirming scope. Consequently, the quotation defines the exact material, dimensions, rating, inspection and documentation requirements. Where applicable, the project can reference the official ASME B31.3 Process Piping requirements together with the client specifications and approved temporary-piping procedure.
| Nominal size | 1/2 in. to 48 in., subject to material, wall thickness, connection type, pressure conditions and handling limits. |
|---|---|
| Typical construction | Straight fixed-length spool, commonly with two specified end connections; special configurations require an approved drawing. |
| Materials | Carbon steel, stainless steel, alloy steel and selected special alloys according to the temporary piping class. |
| End connections | Weld neck or other specified flanges, butt-weld bevels, threaded ends or socket-weld ends where the approved design permits. |
| Flange details | Project-specified standard, type, class, facing, bore, drilling, material and surface finish. |
| Applicable requirements | Approved project specifications and applicable editions of ASME B31.3 or B31.1, ASME B16.5/B16.47, ASME Section IX and relevant material standards. |
| Inspection and testing | Visual and dimensional inspection, PMI, PT, MT, RT, UT or pressure testing according to the approved inspection and test plan. |
| Identification | Unique spool number, temporary-service marking, flow or orientation marks and status identification as the project requires. |
| Documentation | Material certificates, dimensional report, weld records, NDT reports, test records and release documents as agreed. |
Safety note: Never select a dummy spool by length alone. The responsible project engineer must approve its design, pressure boundary, installation purpose, test conditions, temporary supports and removal plan.
Types of Temporary Dummy Spools
The permanent component and planned temporary activity determine the dummy spool configuration.
Valve Replacement Spool
This fixed-length section matches the valve face-to-face dimension and flange details. Afterwards, the crew removes it and installs the designated valve.
Instrument Replacement Spool
A temporary spool can substitute for a flowmeter or similar inline instrument. Thus, early piping work can continue while the project protects the instrument.
Filter or Equipment Spool
This configuration occupies the approved space of a filter or equipment connection during trial assembly, delivery delay or a defined temporary activity.
Flushing Dummy Spool
A flow-through bore can route the flushing medium while the project isolates sensitive equipment. In addition, the procedure must address debris and discharge control.
Hydrotest Dummy Spool
An engineered spool can form part of an approved hydrotest boundary. However, design personnel must verify pressure rating, test loads, vents and drains.
Special Temporary Spool
A project drawing may define offsets, branches, test points or support attachments. Consequently, the enquiry must include the complete temporary arrangement.
Dummy Spool Manufacturing Process
A controlled workflow connects the temporary duty, approved design, materials and final identification.
Duty and Drawing Review
First, engineering personnel review the substitution purpose, drawing, piping class, test conditions and removal requirements.
Material Verification
Next, the material team matches pipe, flanges and fittings with the approved bill of materials and maintains identification.
Cutting and Preparation
Then, technicians cut the pipe, prepare ends and establish the specified face-to-face allowance.
Fit-Up and Welding
Fabricators control overall length, flange alignment, bolt-hole orientation and any specified branch or test connection.
Inspection and Testing
Afterwards, inspectors perform dimensional checks, weld examinations and pressure testing according to the approved plan.
Marking and Release
Finally, the team applies temporary-service identification, protects the ends and releases the agreed quality documents.
Temporary Installation and Removal Control
A dummy spool needs the same disciplined change control as other temporary piping. First, the responsible engineer defines its purpose, service limits and installation period. Next, the site team records it on the temporary-items register and verifies the correct gaskets, bolting, supports and tightening procedure.
After the planned activity, authorized personnel isolate and depressurize the line according to site procedures. Then, they remove the dummy spool, install the permanent component and update the system records. The UK HSE pressure-systems guidance provides additional general safety context for pressure equipment and systems. Finally, a close-out check confirms that no temporary spool remains in an unintended location.
- Use clear temporary-service tags and a unique spool number
- Define pressure, temperature, fluid and test limits
- Check flange compatibility, gasket selection and bolting
- Assess temporary and permanent support conditions
- Control installation through an approved procedure or permit
- Track removal and permanent-equipment reinstatement
Quality Control and Documentation
Quality planning begins with the approved temporary-spool datasheet or drawing. First, our team checks material and dimensional requirements. Then, inspectors monitor fit-up, welding and the specified examinations. In addition, buyers can define third-party inspection or project hold points.
Material Traceability
Material identification and certificates connect the pipe, flanges and fittings to the marked dummy spool.
Dimensional Verification
Inspectors verify face-to-face length, flange alignment, bolt-hole orientation and any branch locations.
Weld and Test Records
Weld maps, procedure references, examination reports and test records support the agreed quality package.
Temporary Identification
Clear marking distinguishes the dummy spool from permanent piping and supports installation and removal control.
Learn more about pipe spool quality control and testing or review our pipe spool services.
Dummy Spool vs. Removable Spool
A dummy spool normally substitutes for another item during a limited construction, testing, flushing or maintenance activity. In contrast, a removable spool forms part of the planned piping arrangement and allows access for recurring maintenance or equipment removal.
Therefore, this page targets temporary substitution spools. Visit our removable spool in piping page for planned detachable assemblies or our pipe spool piece page for permanent custom sections.
Information Required for a Dummy Spool Quote
To begin with, send the approved temporary arrangement and its intended use. Also include:
- Approved drawing, spool number and revision status
- Permanent item that the dummy spool will replace
- Required face-to-face length and dimensional tolerances
- Nominal size, wall thickness and material grade
- Flange standard, type, class, facing, bore and orientation
- Design pressure, design temperature and temporary fluid service
- Maximum test pressure and test medium where applicable
- Vents, drains, branches and temporary support requirements
- Welding, NDT, pressure testing and acceptance criteria
- Marking, coating, documentation, packing and delivery requirements
Frequently Asked Questions
What is a dummy spool in piping?
A dummy spool is a temporary pipe section that substitutes for a valve, instrument, filter or another inline item. It normally matches the required face-to-face length and end connections for an approved temporary activity.
Why do projects install dummy spool pipes?
Projects use them for trial fit-up, construction alignment, flushing, pressure testing or temporary equipment substitution. However, the responsible engineer must approve the exact purpose and operating limits.
Can a dummy spool replace a valve?
Yes, a correctly specified dummy spool can occupy a valve's face-to-face space during an approved temporary activity. Afterwards, the site team removes the spool and installs the designated valve under the project procedure.
Can every dummy spool handle hydrotest pressure?
No. The project must engineer and verify the spool for the specified test pressure, medium, temperature, loads and connections. Therefore, never assume that a dimensionally suitable spool can safely enter a pressure-test boundary.
Is a dummy spool the same as a blind flange?
No. A typical dummy spool provides a pipe section between two connection points and may allow flow through its bore. In contrast, a blind flange closes a flanged opening. The approved test or flushing arrangement determines the required component.
Is a dummy spool a permanent piping component?
Normally, no. Its temporary purpose requires clear identification, tracking and removal. Nevertheless, only the responsible project engineer can define whether a particular engineered spool may remain in service.
Which information should a dummy spool RFQ include?
Provide the drawing, replacement item, face-to-face length, size, wall thickness, material, ends and pressure conditions. In addition, include test, inspection, marking, documentation and delivery requirements.
Request a Quote for a Custom Dummy Spool Pipe
Send Mesta Inc. the approved drawing, substitution purpose, dimensions, materials, pressure conditions, inspection scope and delivery schedule. Our team will review the enquiry and define the appropriate fabrication, testing, identification and documentation scope.
