Project, area, unit, line number, isometric number, spool number and revision connect the sheet with the correct piping system.
Custom spool pipe pieces manufactured to approved project requirements
Spool Pipe Piece Manufacturer in India
Mesta Inc. manufactures custom spool pipe pieces to approved drawings, piping classes and project specifications. Carbon steel, stainless steel, alloy steel and selected nickel-alloy assemblies are available with specified welding, inspection, testing and documentation.
Custom Spool Pipe Piece Manufacturer

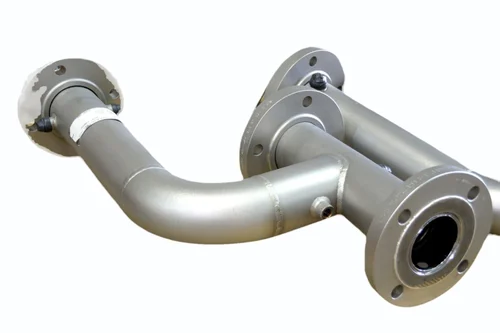

A spool pipe piece is a project-specific piping assembly fabricated from pipe, fittings, flanges and approved attachments. Mesta Inc. manufactures each item against released isometric drawings, spool drawings, bills of materials and piping-class requirements so the finished assembly arrives identified and ready for the planned site connection.
Available configurations include straight, flanged, elbow, reducer and branch spool pieces. End connections may be flanged, butt-weld, socket-weld, threaded or otherwise drawing-defined. Dimensions, materials, pressure class, flange orientation, weld details and acceptance criteria must be confirmed for every enquiry.
This page explains the engineering concept. Buyers seeking specifications and quotations should visit Mesta Inc.'s pipe spool piece manufacturer page. Additionally, our prefabricated pipe spools page explains the wider off-site fabrication strategy.
Discrete assemblyOne spool forms a manageable portion of a larger piping line.
Drawing-definedIsometrics and spool drawings establish components, dimensions and boundaries.
Uniquely identifiedA spool number links the physical item with project records and installation location.
Connection-readyFlanged or field-weld ends connect the spool with adjoining piping or equipment.
Spool Pipe Piece Specifications and Components
A spool piece may contain only pipe and end preparations, or it may combine several piping components. For example, the table below explains common elements and the information that controls them.
| Component | Function in the spool | Drawing or specification data |
|---|---|---|
| Straight pipe | Forms the pressure-containing barrel and establishes cut lengths. | Size, schedule or wall, material, length and end preparation |
| Elbow or bend | Changes direction and establishes centre-to-end geometry. | Angle, radius, material, wall and orientation |
| Tee or branch | Creates a connection to another piping route. | Run and branch sizes, type, reinforcement and orientation |
| Reducer | Transitions between different nominal pipe sizes. | Concentric or eccentric type, end sizes, orientation and length |
| Flange | Provides a bolted connection to another spool or equipment. | Standard, type, class, facing, bore, material and bolt-hole orientation |
| Outlet or coupling | Provides a branch, drain, vent or instrument interface when approved. | Type, size, rating, location and angular orientation |
| Attachment | Adds a support lug, trunnion, shoe, earthing boss or another specified item. | Detail drawing, material, weld type, location and examination |
| Field connection | Joins the spool to adjoining work during site erection. | Flanged, butt-weld, socket-weld, threaded or project-specific detail |
Spool Pipe Piece Configurations and Materials
Moreover, a spool drawing converts the piping design into fabrication information for one identified assembly. First, it references the parent isometric and current revision. Next, it shows dimensions, components and weld locations. Finally, it provides the identifiers needed for fabrication, inspection and installation tracking.
Dimensions
Centre-to-face, face-to-face, centre-to-end, cut lengths, elevations and coordinates control geometry.
Bill of Materials
Moreover, item numbers connect pipe, fittings, flanges and attachments with their specifications and quantities.
Weld Information
Weld numbers, joint types, shop or field designation and examination requirements support production control.
Orientation
North arrows, elevations, branch angles and flange bolt-hole orientation clarify the spool's installed position.
Special Notes
In addition, notes may define slope, field allowance, cold spring, PWHT, coating or cleanliness requirements.
See the dedicated pipe spool drawing page for a deeper explanation of drawing fields and revision control.
Spool Boundaries, Shop Welds and Field Welds
Spool breakdown divides a complete piping route into sections that fabrication, transport and erection teams can manage. Consequently, designers consider geometry, weight, shipping envelope, lifting access, coating, heat treatment and installation sequence before placing spool breaks.
| Boundary | How connection occurs | Main planning consideration |
|---|---|---|
| Flanged boundary | Installers align gasketed flange faces and tighten specified bolting. | Facing protection, class, alignment, bolt access and gasket selection |
| Field-weld boundary | Site personnel complete the final welded joint between spool ends. | Fit-up allowance, weld access, examination and field conditions |
| Equipment interface | The spool connects to a pump, vessel, exchanger, skid or other nozzle. | Fixed dimensions, allowable nozzle loads, alignment and vendor data |
| Mechanical connection | An approved coupling, thread or proprietary joint connects sections. | Compatibility, restraint, sealing method and installation procedure |
| Field-fit piece | Site measurement establishes or confirms a final closure dimension. | Survey data, trim allowance, material control and approval workflow |
Important: A spool piece is not automatically removable during normal maintenance. A purpose-designed removable spool in piping needs suitable flanged interfaces, clearance, handling and an approved isolation arrangement.
Spool Pipe Piece Manufacturing Process
A controlled fabrication sequence connects engineering information with the completed spool.
Drawing Release
First, the approved isometric, spool drawing and material information establish the production basis.
Material Preparation
Next, personnel identify components, review certificates, calculate cut lengths and prepare ends.
Fit-Up
Then, fabricators position pipe and fittings while controlling alignment, orientation and joint preparation.
Welding
Qualified personnel complete specified joints under approved welding procedures and process controls.
Inspection and Finishing
Afterwards, inspectors complete required checks before approved surface treatment and preservation.
Marking and Release
Finally, identification, connection protection and agreed records support dispatch to site.
Our fabricated pipe spools page covers the broader custom manufacturing service.
Spool Identification, Quality and Traceability
A spool number gives every assembly a trackable identity. For instance, project teams can use it to connect drawings, material records, weld maps, inspection status, coating records, packing lists and installation progress. This connection becomes especially important when one project contains hundreds or thousands of individual spools.
Material Traceability
Heat numbers and material certificates can connect pressure-containing components with the spool record.
Weld Traceability
Likewise, weld numbers can link joints with WPS references, welder identity, NDT and repair history.
Dimensional Status
Inspection reports can record critical dimensions, flange alignment and branch orientation against acceptance criteria.
Release Status
Moreover, spool registers can show fabrication, inspection, finishing, dispatch and site-installation progress.
Visit Quality Control and Testing for a focused guide to inspection methods and records.
Spool Pipe Piece Types and Applications
Spool pieces appear in process piping, utilities, water systems, power plants, refineries, chemical facilities, equipment skids, marine systems and general industrial projects. However, the piping class and approved design always determine the material, configuration and acceptance requirements.
Straight Spool Piece
A straight run may use weld ends, flanges or another approved connection at its boundaries.
Flanged Spool
One or more flanges create bolted connections to piping, equipment or another spool.
Elbow Spool
Additionally, elbows create directional changes while the drawing controls radius, angle and orientation.
Branch or Reducer Spool
Tees, outlets and reducers create branches or size transitions within one identified assembly.
Removable Spool Piece
A purpose-designed detachable product provides planned access or separation under an approved arrangement.
Dummy Spool Pipe
In contrast, a dummy spool temporarily substitutes for another component during a defined project activity.
Spool Pipe Piece RFQ Checklist
Before releasing a spool for fabrication, engineering and project teams should confirm the technical basis. Therefore, the release package should identify:
- Parent piping isometric, spool drawing and current revision
- Line number, spool number, piping class and service
- Pipe sizes, schedules, materials and component specifications
- Centreline, face-to-face, centre-to-end and elevation dimensions
- Flange details, end preparations and field-weld locations
- Branch angles, reducer orientation, slope and field allowances
- Applicable construction code and client specifications
- Welding, PWHT, NDT, PMI and pressure-testing requirements
- Painting, coating, lining, passivation or cleanliness requirements
- Spool weight, lifting points, shipping dimensions and erection sequence
- Identification, documentation and approval responsibilities
Additionally, teams should resolve clashes, fixed equipment interfaces and missing vendor information before final fabrication release.
Frequently Asked Questions
What is a spool pipe piece?
A spool piece is an identified section of a piping system fabricated as one manageable assembly. It may include pipe, fittings, flanges, branches, attachments and prepared connection ends.
Does Mesta Inc. manufacture custom spool pipe pieces?
Projects normally use the term for a section prepared before final installation. However, the fabrication location and amount of shop work depend on the project execution plan.
What information identifies a piping spool?
A spool commonly carries a project-specific spool number linked with its line, isometric, drawing revision and installation location. In addition, marking may show orientation or match information.
What is a spool break in piping?
A spool break marks the boundary between adjacent spool pieces or field-run piping. For example, it may occur at a flange, field weld, equipment nozzle or approved mechanical connection.
What is the difference between a shop weld and field weld?
A fabrication team completes a shop weld before delivery under workshop conditions. In contrast, site personnel complete a field weld during erection between spools or field-run sections.
Is a spool piece the same as a removable spool?
Not necessarily. A general spool piece forms one part of the permanent piping route. A removable spool needs purpose-designed connections, dismantling clearance, handling provisions and an approved maintenance or isolation function.
Which documents can follow a spool piece?
Depending on the order, records may include approved drawings, material certificates, weld maps, welding records, NDT reports, dimensional reports, test records, coating reports and release documents.
